Virginia Transformer 36/48/60 MVA
230 kV / 34.5 kV transformer inquiry for sale

230 kV high side / 34.5 kV low side

Equipment photographs & nameplate documents

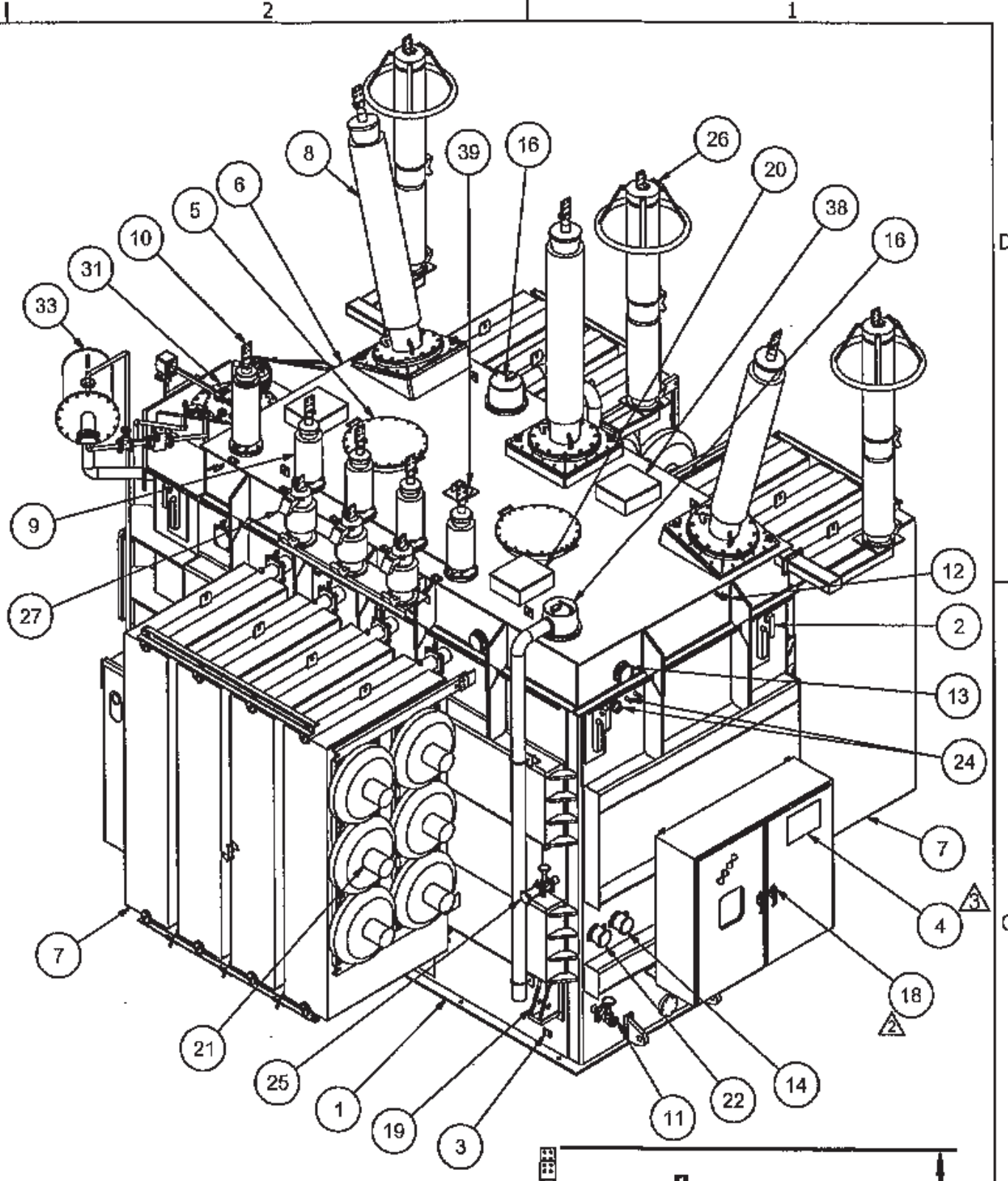

As-built general arrangement, revision 3. The drawing does not specify a unit serial or establish a manufacture date. Select an image to view it full size.

Virginia general arrangement · HA680A design
Virginia general arrangement · HA680A design

Equipment specifications

Manufacturer
Virginia Transformer
Application
Transformer inquiry
Power rating
36/48/60 MVA
High-side voltage
230 kV
Low-side voltage
34.5 kV
Listed quantity
On request
Manufacture year
On request
Tap changer
Confirm with technical package
Drawing ratings
36 / 48 / 60 MVA
High side
230 kV grounded wye
Low side
34.5 kV grounded wye
Phase / frequency
3-phase / 60 Hz
Cooling
ONAN / ONAF / ONAF
Temperature rise
65°C at 40°C maximum ambient
HV regulation
±16 × 0.9375% load taps
Design reference
HA680A / 49036MA003U, revision 3

Equipment overview

Virginia Transformer design HA680A is rated 36/48/60 MVA with 230 kV and 34.5 kV grounded-wye windings. Its general arrangement specifies on-load voltage regulation and natural cooling with two forced-air cooling stages.

As-built general arrangement, revision 3. The drawing does not specify a unit serial or establish a manufacture date.

Freight and delivery scope quoted on request.

Listing details

Virginia Transformer design HA680A is rated 36/48/60 MVA with 230 kV and 34.5 kV grounded-wye windings. Its general arrangement specifies on-load voltage regulation and natural cooling with two forced-air cooling stages.

Winding connections, secondary options, included accessories, and tap-changer details must be checked against the unit-specific nameplate and drawings. The description above preserves the listed configuration.

Plan the purchase and delivery

Review the transformer procurement checklist, the technical documentation guide, and delivery planning requirements.

Looking for a different unit? Browse new & unused inventory and pre-owned transformers, or ask about additional sourcing options.

Request the technical package

Ask our team for the records available for this equipment and confirmation of its current status.

  • Nameplate & winding diagram
  • General arrangement drawings
  • Equipment photographs
  • Factory or field test reports
  • Condition & service history
  • Dimensions & shipping weights

Document availability varies by unit. Pricing, location, lead time, warranty, and delivery scope are provided with the quotation.
