Condition on request

GEORGIA 108/148/180 MVA
345 kV / 34.5 kV power transformer for sale

345 kV high side / 34.5 kV low side

Equipment ID: 103115-01

Nameplate & technical information

Original supplied document. Ratings are transcribed as printed and require confirmation against final OEM records.

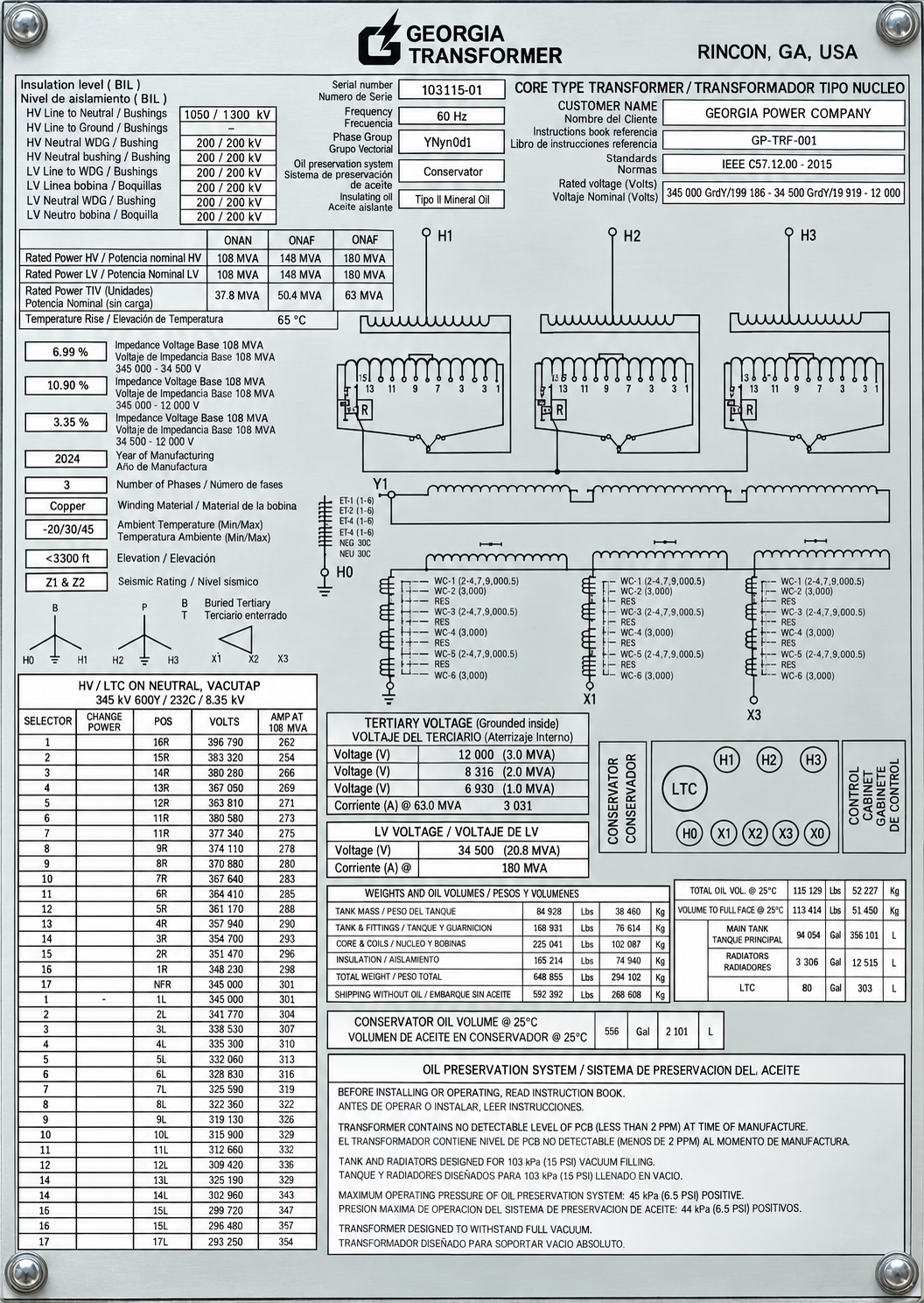

Georgia Transformer nameplate, serial 103115-01, 108/148/180 MVA, 345/34.5 kV
Original supplied Georgia Transformer nameplate — serial 103115-01. Select to view full resolution.

Equipment specifications

Manufacturer
GEORGIA
Equipment ID
103115-01
Application
Power transformer
Power rating
108/148/180 MVA
High-side voltage
345 kV
Low-side voltage
34.5 kV
Catalog condition
Condition on request
Listed quantity
On request
Manufacture year
2024 (as printed)
Tap changer
HV neutral VACUTAP LTC; tap schedule requires confirmation
Serial number
103115-01
Manufacturer location
Rincon, Georgia, USA
Year shown
2024
Construction
Core type; copper windings
Phase / frequency
3-phase / 60 Hz
Vector group
YNyn0d1
ONAN / ONAF / ONAF ratings, as printed
108 / 148 / 180 MVA
Rated voltage marking
345,000 GrdY/199,186 – 34,500 GrdY/19,919 – 12,000 V
Tertiary
12 kV; buried delta, grounded inside
Tertiary rating table, as printed
37.8 / 50.4 / 63 MVA; conflicts with secondary tertiary table—confirm with OEM
Temperature rise
65 °C
HV–LV impedance
6.99% on 108 MVA base
HV–tertiary impedance
10.90% on 108 MVA base
LV–tertiary impedance
3.35% on 108 MVA base
HV line insulation / bushing BIL
1,050 / 1,300 kV as printed
HV neutral insulation / bushing BIL
200 / 200 kV
LV line and neutral insulation / bushing BIL
200 / 200 kV
Oil preservation
Conservator; Type II mineral oil
LTC marking
HV / LTC on neutral, VACUTAP; 345 kV 600Y / 232C / 8.35 kV
Ambient marking
−20 / 30 / 45, as printed
Altitude marking
Less than 3,300 ft
Seismic marking
Z1 & Z2
Standard referenced
IEEE C57.12.00–2015
Instruction book reference
GP-TRF-001
Total weight, unverified
648,855 lb / 294,102 kg as printed; confirm final shipping schedule
Shipping weight without oil, unverified
592,392 lb / 268,608 kg as printed; confirm final shipping schedule
PCB statement
Less than 2 ppm at time of manufacture, per supplied plate

345 kV Georgia Transformer opportunity

This three-phase Georgia Transformer is identified by serial 103115-01. The supplied 2024 nameplate lists 345 kV high-side and 34.5 kV low-side windings, a 12 kV buried tertiary, copper conductors, conservator oil preservation and a neutral-end VACUTAP load tap changer. Main-winding cooling stages are printed as 108 MVA ONAN, 148 MVA ONAF and 180 MVA ONAF.

Technical package and verification

The supplied image contains conflicting tertiary ratings, irregular tap-table values and inconsistent oil-volume, oil-weight and shipping-weight information. The 148 MVA intermediate rating is reproduced exactly as printed. These document values are not an engineering-approved operating or transport schedule. Request the original OEM records, final tap schedule, certified weights and oil quantities, and serial-specific test reports before selection or logistics planning.

Request specifications and pricing

Contact Transformer Traders with your project voltage, capacity, site location and required delivery date. Ask for current condition, quantity, availability, pricing, equipment photographs, accessory scope and release arrangements for serial 103115-01.

Listing details

Georgia Transformer serial 103115-01. 108/148/180 MVA, 345/34.5 kV, 12 kV buried tertiary. 2024 as printed. Condition and availability on request. Specifications from supplied nameplate require OEM confirmation.

Winding connections, secondary options, included accessories, and tap-changer details must be checked against the unit-specific nameplate and drawings. The description above preserves the listed configuration.

Plan the purchase and delivery

Review the transformer procurement checklist, the technical documentation guide, and delivery planning requirements.

Looking for a different unit? Browse new & unused inventory and pre-owned transformers, or ask about additional sourcing options.

Request the technical package

Ask our team for the records available for this equipment and confirmation of its current status.

  • Nameplate & winding diagram
  • General arrangement drawings
  • Equipment photographs
  • Factory or field test reports
  • Condition & service history
  • Dimensions & shipping weights

Document availability varies by unit. Pricing, location, lead time, warranty, and delivery scope are provided with the quotation.
