Condition on request

VIRGINIA 3.75/5/6.25 MVA
230 kV / 13.8 kV power transformer for sale

230 kV high side / 13.8 kV low side

Equipment ID: BE230.1328

Equipment photographs

Select an image to view it full size.

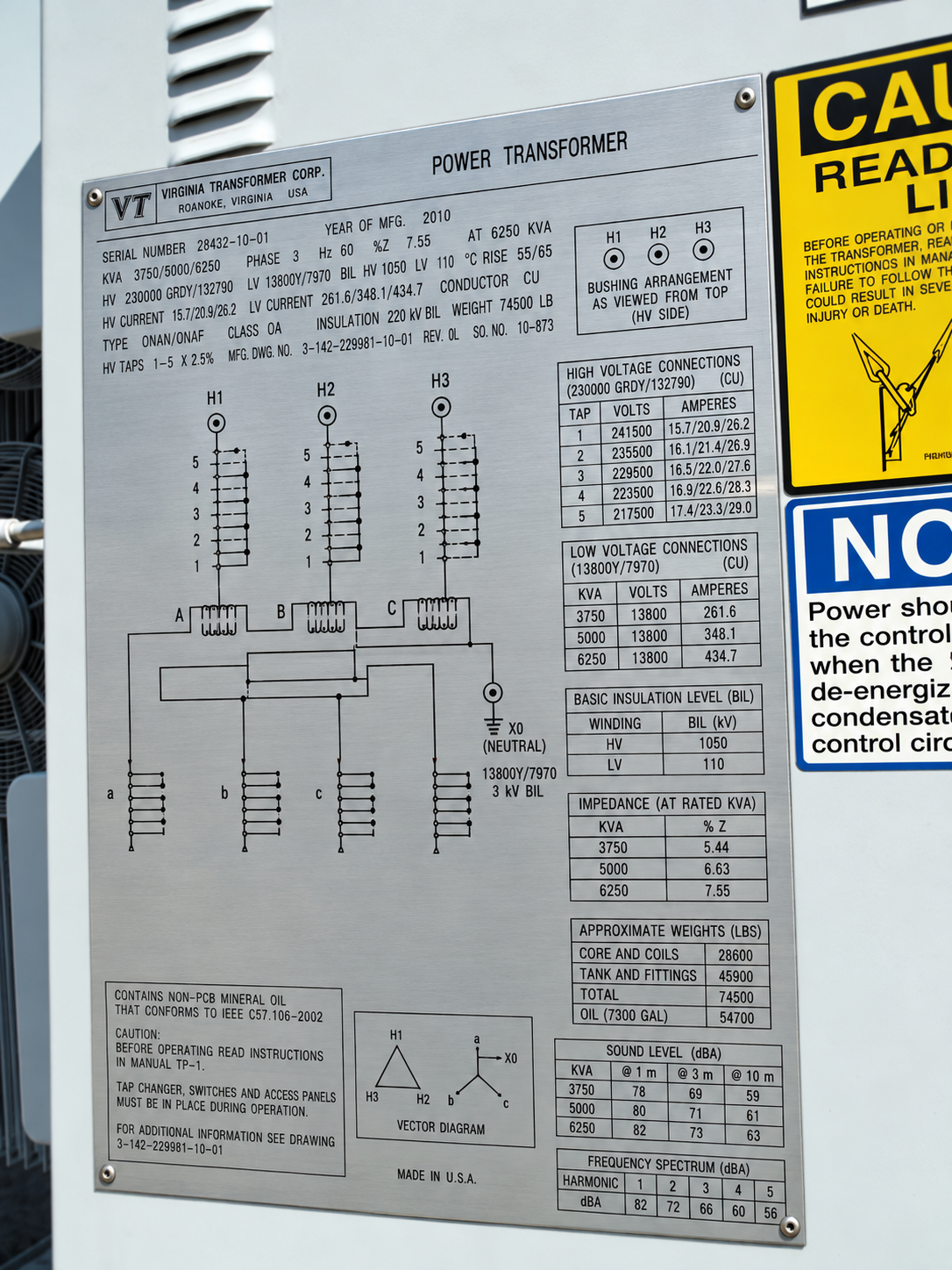

BE230.1328 — supplied Virginia Transformer nameplate image
BE230.1328 — supplied Virginia Transformer nameplate image

Equipment specifications

Manufacturer
VIRGINIA
Equipment ID
BE230.1328
Application
Power transformer
Power rating
3.75/5/6.25 MVA
High-side voltage
230 kV
Low-side voltage
13.8 kV
Catalog condition
Condition on request
Listed quantity
On request
Manufacture year
2010
Tap changer
Five HV tap positions shown; mechanism and operation to be verified
Serial number shown
28432-10-01
Manufacturer location
Roanoke, Virginia, USA
Year shown
2010
Phase / frequency
3-phase / 60 Hz
Voltage marking
230,000 GRDY / 132,790 V; 13,800Y / 7,970 V
Cooling / class marking
ONAN / ONAF; OA
Temperature rise
55 / 65 °C
Conductor
Copper
HV / LV BIL table
1,050 / 110 kV
Other insulation markings
220 kV BIL and 3 kV BIL also appear; inconsistent with the winding BIL table
Impedance table
5.44% at 3,750 kVA; 6.63% at 5,000 kVA; 7.55% at 6,250 kVA
HV tap table (as shown)
241,500 / 235,500 / 229,500 / 223,500 / 217,500 V
LV current table
261.6 / 348.1 / 434.7 A at 13,800 V
Approximate core and coils weight
28,600 lb
Approximate tank and fittings weight
45,900 lb
Total weight shown
74,500 lb
Oil shown
7,300 gal / 54,700 lb
Oil statement
Non-PCB mineral oil; IEEE C57.106-2002 referenced
Drawing reference
3-142-229981-10-01; revision 0L
Sales order marking
10-873
Manual reference
TP-1
Sound levels at 1 / 3 / 10 m
3,750 kVA: 78/69/59 dBA; 5,000 kVA: 80/71/61 dBA; 6,250 kVA: 82/73/63 dBA
Frequency spectrum values
Harmonics 1–5: 82 / 72 / 66 / 60 / 56 dBA

Supplied nameplate requires technical reconciliation

This is a new catalog opportunity based on the supplied image. Its heading identifies 230 kV, but its tap table lists 229.5 kV at the center position; winding-connection markings, BIL markings and listed current values also require verification. The stated total weight equals the listed core-and-coil plus tank weights before the separately listed oil weight. These values are reproduced as document data, not engineering-verified specifications.

Request the original OEM nameplate, serial confirmation and test report before selection. Condition, quantity, availability and delivery location are on request.

Listing details

BE230.1328. VIRGINIA. 3.75/5/6.25 MVA. 230 kV / 13.8 kV. Based on supplied equipment document. Availability and final configuration require written confirmation.

Winding connections, secondary options, included accessories, and tap-changer details must be checked against the unit-specific nameplate and drawings. The description above preserves the listed configuration.

Plan the purchase and delivery

Review the transformer procurement checklist, the technical documentation guide, and delivery planning requirements.

Looking for a different unit? Browse new & unused inventory and pre-owned transformers, or ask about additional sourcing options.

Request the technical package

Ask our team for the records available for this equipment and confirmation of its current status.

  • Nameplate & winding diagram
  • General arrangement drawings
  • Equipment photographs
  • Factory or field test reports
  • Condition & service history
  • Dimensions & shipping weights

Document availability varies by unit. Pricing, location, lead time, warranty, and delivery scope are provided with the quotation.
