New & unused

WEG 100/133/167 MVA
120 kV / 24.9 kV power transformer for sale

120 kV high side / 24.9 kV low side

Equipment ID: 12308-FA

Equipment photographs & nameplate documents

Nameplate for the identified serial; documentation for other listed units requires confirmation. Select an image to view it full size.

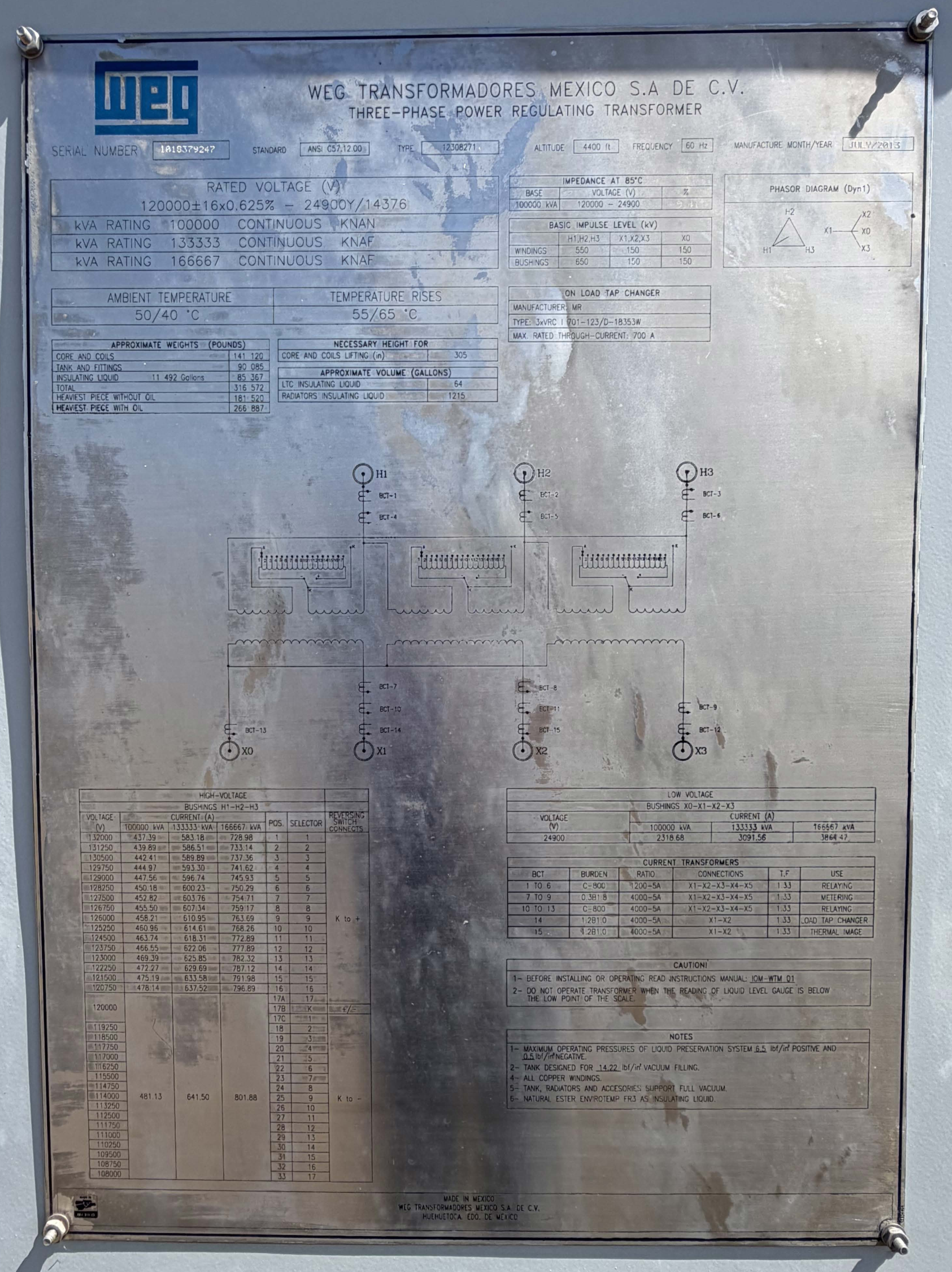

Manufacturer nameplate · WEG serial 1018379247
Manufacturer nameplate · WEG serial 1018379247

Equipment specifications

Manufacturer
WEG
Equipment ID
12308-FA
Application
Power transformer
Power rating
100/133/167 MVA
High-side voltage
120 kV
Low-side voltage
24.9 kV
Catalog condition
New & unused
Listed quantity
2
Manufacture year
On request
Tap changer
Listed with LTC
Nameplate ratings
100 / 133.333 / 166.667 MVA
High side
120 kV delta
Low side
24.9 kV wye
Phase / frequency
3-phase / 60 Hz
Cooling
KNAN / KNAF / KNAF
Vector group
Dyn1
Insulating fluid
Envirotemp FR3 natural ester
HV regulation
±16 × 0.625% with LTC

Equipment overview

WEG power transformer for 120/24.9 kV service, with three cooling ratings up to 166.667 MVA. The documented design combines load tap changing, a delta–wye connection and FR3 natural ester insulating fluid.

Nameplate for the identified serial; documentation for other listed units requires confirmation.

Breakers included, as listed in the existing catalog; confirm included scope in the quotation.

Freight and delivery scope quoted on request.

Technical documents

  • Manufacturer nameplate

    WEG nameplate: 100/133.333/166.667 MVA, 120/24.9 kV, serial 1018379247. Applies to the identified serial only.

Listing details

WEG power transformer for 120/24.9 kV service, with three cooling ratings up to 166.667 MVA. The documented design combines load tap changing, a delta–wye connection and FR3 natural ester insulating fluid.

Winding connections, secondary options, included accessories, and tap-changer details must be checked against the unit-specific nameplate and drawings. The description above preserves the listed configuration.

Plan the purchase and delivery

Review the transformer procurement checklist, the technical documentation guide, and delivery planning requirements.

Looking for a different unit? Browse new & unused inventory and pre-owned transformers, or ask about additional sourcing options.

Request the technical package

Ask our team for the records available for this equipment and confirmation of its current status.

  • Nameplate & winding diagram
  • General arrangement drawings
  • Equipment photographs
  • Factory or field test reports
  • Condition & service history
  • Dimensions & shipping weights

Document availability varies by unit. Pricing, location, lead time, warranty, and delivery scope are provided with the quotation.

How do I confirm availability?

Email the equipment ID or call (248) 250-0407. Equipment is subject to prior sale. Current availability and allocation are confirmed in writing.

Can you coordinate transportation and installation?

Yes. We coordinate shipment preparation, oil services, heavy haul, rigging, placement, and qualified installation support as an agreed project scope. Explore full-service solutions.

What purchase and warranty options apply?

Terms depend on the equipment, condition, seller, and agreed scope. Review purchase options and request a unit-specific quotation.

Listing document

View the equipment one-pager as a PDF. You can download or print it from the PDF viewer.

View listing doc

PDF · Opens in a new tab
