WEG 72/96/120 MVA
161 kV / 34.5 kV power transformer for sale

161 kV high side / 34.5 kV low side

Equipment ID: 17546-GB

Equipment photographs & nameplate documents

Cropped approval-drawing preview; serial 1093722122 appears in the full PDF title block. Manufacture date is unfilled. Select an image to view it full size.

Reference nameplate excerpt · WEG type 17546832
Reference nameplate excerpt · WEG type 17546832

Equipment specifications

Manufacturer
WEG
Equipment ID
17546-GB
Application
Power transformer
Power rating
72/96/120 MVA
High-side voltage
161 kV
Low-side voltage
34.5 kV
Catalog condition
New & unused
Listed quantity
On request
Manufacture year
On request
Tap changer
Listed with LTC
Nameplate ratings
72 / 96 / 120 MVA
High side
161 kV grounded wye
Low side
34.5 kV wye
Phase / frequency
3-phase / 60 Hz
Cooling
ONAN / ONAF / ONAF
Vector group
YNyn0d1, drawing title
HV regulation
±16 × 0.625% with LTC
Tertiary
13.8 kV; harmonic compensation only

Equipment overview

WEG power transformer with 72/96/120 MVA cooling ratings for 161/34.5 kV service. The approval design includes on-load tap changing and a 13.8 kV tertiary dedicated to harmonic compensation.

Cropped approval-drawing preview; serial 1093722122 appears in the full PDF title block. Manufacture date is unfilled.

Freight and delivery scope quoted on request.

Technical documents

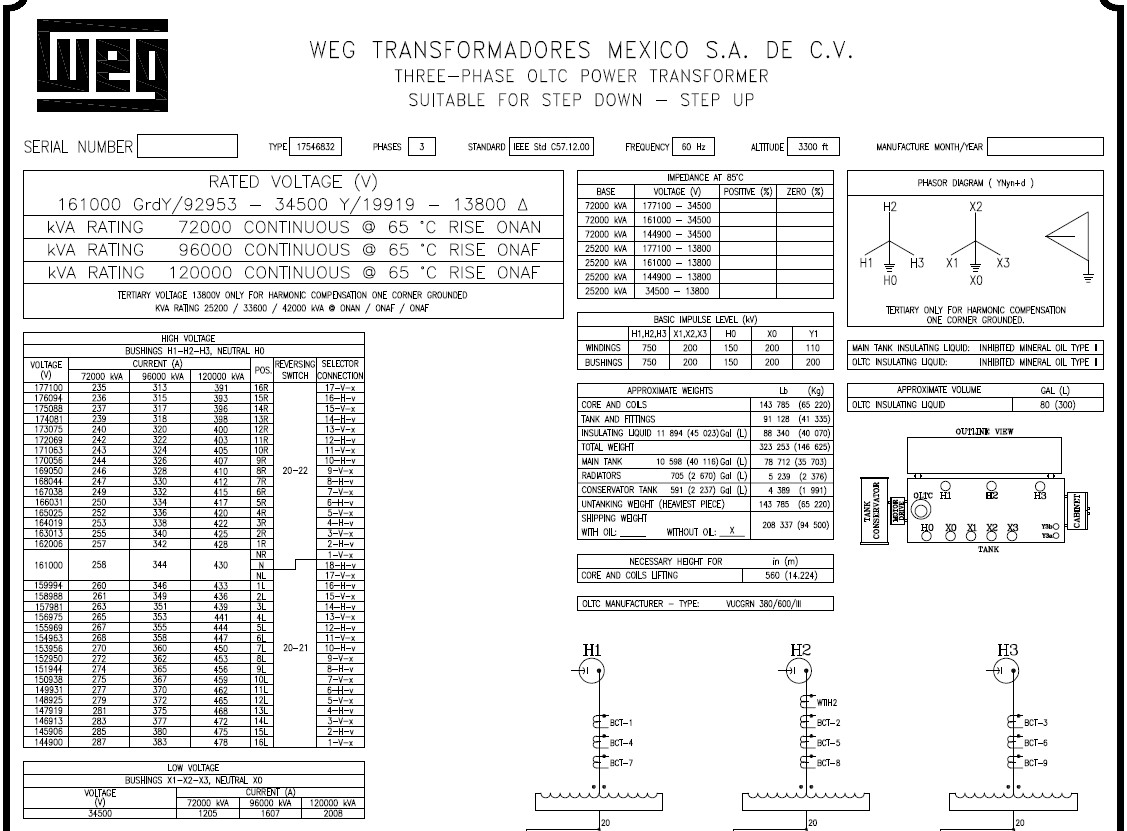

  • Reference nameplate drawing

    WEG approval nameplate drawing: 72/96/120 MVA, 161/34.5 kV, type17546832; serial1093722122 in drawing title block. Manufacture date is unfilled.

  • Preview of reference drawing

    Cropped preview of the same WEG72/96/120 MVA161/34.5 kV reference nameplate drawing.

Listing details

WEG power transformer with 72/96/120 MVA cooling ratings for 161/34.5 kV service. The approval design includes on-load tap changing and a 13.8 kV tertiary dedicated to harmonic compensation.

Winding connections, secondary options, included accessories, and tap-changer details must be checked against the unit-specific nameplate and drawings. The description above preserves the listed configuration.
